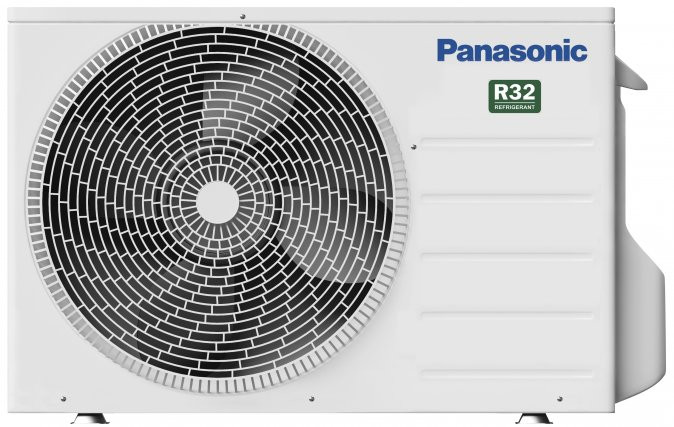

Panasonic CU-TZ25WKE Venkovní jednotka pro řadu TZ 2.5 kW

Panasonic CU-TZ25WKE Panasonic CU-TZ25WKE Venkovní jednotka pro řadu TZ 2.5 kW

20 451,42 Kč
16 902,00 Kč bez DPH CU-TZ25WKE

Panasonic CU-TZ25WKE Venkovní jednotka

Outdoor unit CU-TZ25WKE
Outdoor air flow (Cool) m³/min 30,0
Outdoor air flow (Heat) m³/min 28,9
Outdoor sound pressure (Cool -Hi) (4) dB(A) 47
Outdoor sound pressure (Heat -Hi) (4) dB(A) 48
Outdoor dimension (Height) (5) mm 542
Outdoor dimension (Width) (5) mm 780
Outdoor dimension (Depth) (5) mm 289
Outdoor net weight kg 25
Pipe diameter (Liquid) Inch (mm) 1/4 (6,35)
Pipe diameter (Gas) Inch (mm) 3/8 (9,52)
Pipe length range m 3 ~ 15
Elevation difference (in/out) (6) m 15
Pipe length for additional gas m 7,5
Additional gas amount g/m 10
Refrigerant (R32) / CO2 Eq. kg / T 0,67 / 0,452
Operating range (Cool - Min) °C -10
Operating range (Cool - Max) °C +43
Operating range (Heat - Min) °C -15
Operating range (Heat - Max) °C +24
