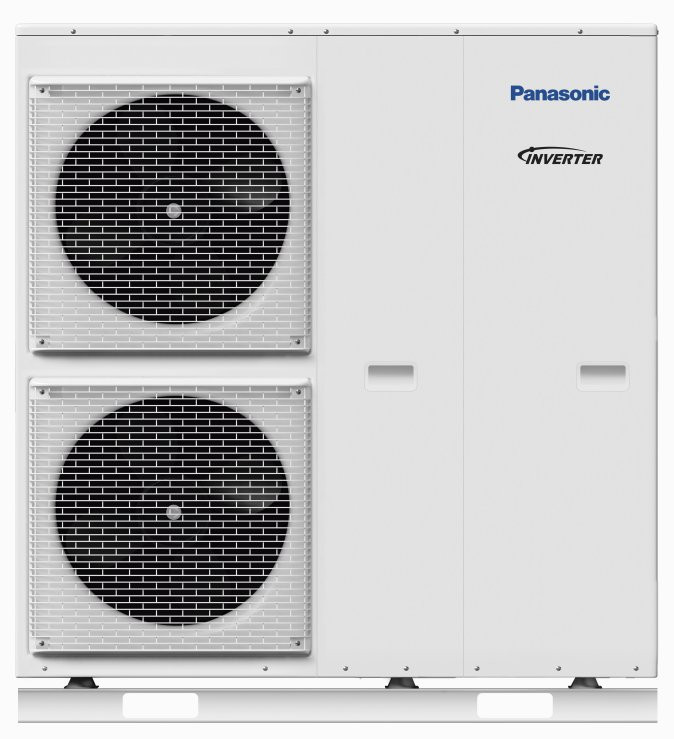

Panasonic WH-UQ16HE8 Venkovní jednotka T-CAP 16 kW 380V R410A

Panasonic WH-UQ16HE8 Panasonic WH-UQ16HE8 Venkovní jednotka T-CAP 16 kW 380V R410A

236 642,12 Kč
195 572,00 Kč bez DPH WH-UQ16HE8

Outdoor unit WH-UQ16HE8
Outdoor sound power part load (Heat) (3) dB(A) 62
Outdoor sound power full load (Heat) dB(A) 65
Outdoor sound power full load (Cool) dB(A) 68
Outdoor dimension (Height) mm 1410
Outdoor dimension (Width) mm 1283
Outdoor dimension (Depth) mm 320
Outdoor net weight kg 161
Refrigerant (R410A) / CO2 Eq. kg / T 2,99 / 6,243
Pipe diameter (Liquid) Inch (mm) 3/8 (9,52)
Pipe diameter (Gas) Inch (mm) 5/8 (15,88)
Pipe length range m 3 ~ 30
Elevation difference (in/out) m 20
Pipe length for additional gas m 10
Additional gas amount g/m 50
Operation range (Outdoor ambient) °C -28 ~ +35
Water outlet (Heat) °C 20 ~ 60
Water outlet (Cool) °C 5 ~ 20
